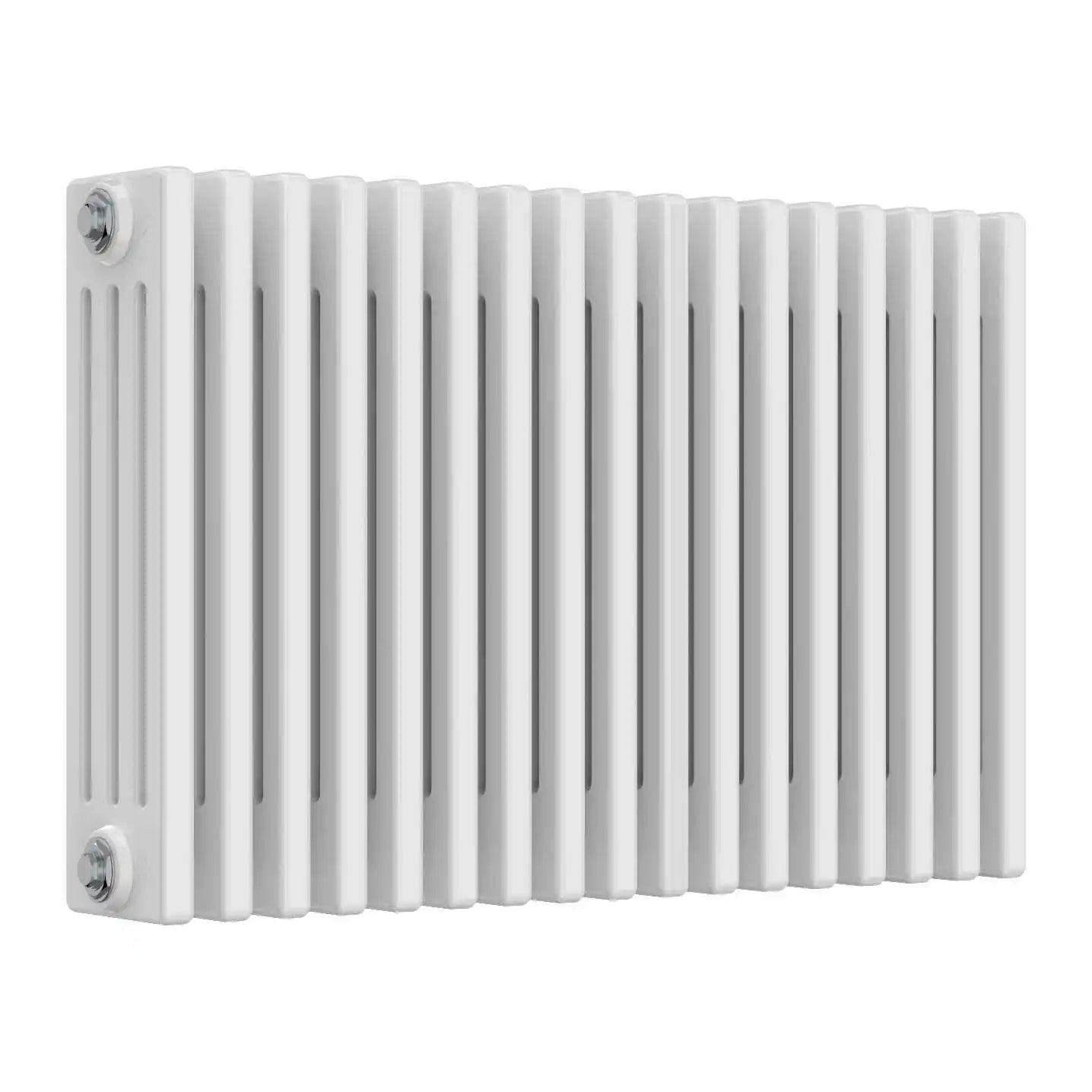

White 4 Column Radiator – 500mm High | 785mm Wide

White 4 Column Radiator – 500mm High | 785mm Wide

£299.99


SKU: 4/C517

Quantity
  • Width 785mm
  • Height500mm
  • Pipe Centres785mm + valves
  • Colour White / Matte
  • Columns 4
  • Heat Output (Δ50) 1096watt │ 3738btu/h

Product Details

Width: 785mm
Height: 500mm
Pipe Centres: 785mm + valves
Heat Output: 1096watt │ 3738btu/h
Wall to Pipe Centres: 66mm
Total Projection: 98mm
Finish: White / Matte
Orientation: Horizontal
Columns: 4
Sections: 17
Material: Mild Steel
Weight: - kg
Usage: Central Heating
Mountings: Fixing brackets, plugs, screws and airvent
Guarantee: 5 Years

Lower height radiators are often the only option for rooms with large windows, sloping ceilings, or fireplace surrounds that block taller units. Yet many compact radiators sacrifice heat output to fit the space. This white horizontal column radiator solves that problem by delivering 1096W (3738 BTU/h) at just 500mm high – ideal for fitting under low sills or in converted attic rooms.

The finish is a classic white matte, which suits both period cottages and modern flats equally well. Unlike gloss finishes that can look harsh under direct light, this matte surface softens into the background and resists showing everyday marks. At 500mm high and 785mm wide, this traditional column radiator tucks neatly into spaces where a 600mm tall unit simply would not fit. The Total Projection is 98mm, keeping the radiator close to the wall.

Practical advantages include:
  • Four columns per section maximise the surface area for heat emission, meaning this low-height unit punches above its weight – you get proper warmth even where vertical space is restricted.

  • With 17 sections and pipe centres of 785mm (plus valves), this traditional column radiator is a straightforward replacement for older single-panel radiators in living rooms, dining rooms, or home offices.

  • Constructed from mild steel, the radiator retains thermal energy effectively, continuing to radiate warmth long after the heating turns off – useful for rooms that cool down quickly.

  • The 5-year guarantee offers solid reassurance, and the included fixing brackets, plugs, screws, and air vent mean you have everything ready for installation.

A heating engineer will find this horizontal radiator simple to plumb into most UK central heating systems. The matte white finish is easy to wipe clean. For rooms where height is at a premium but warmth cannot be compromised, this four-column radiator is a well-judged solution.
