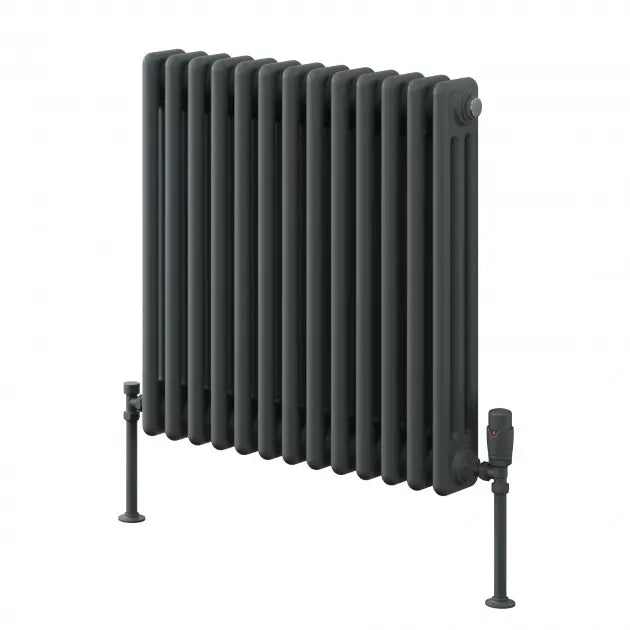

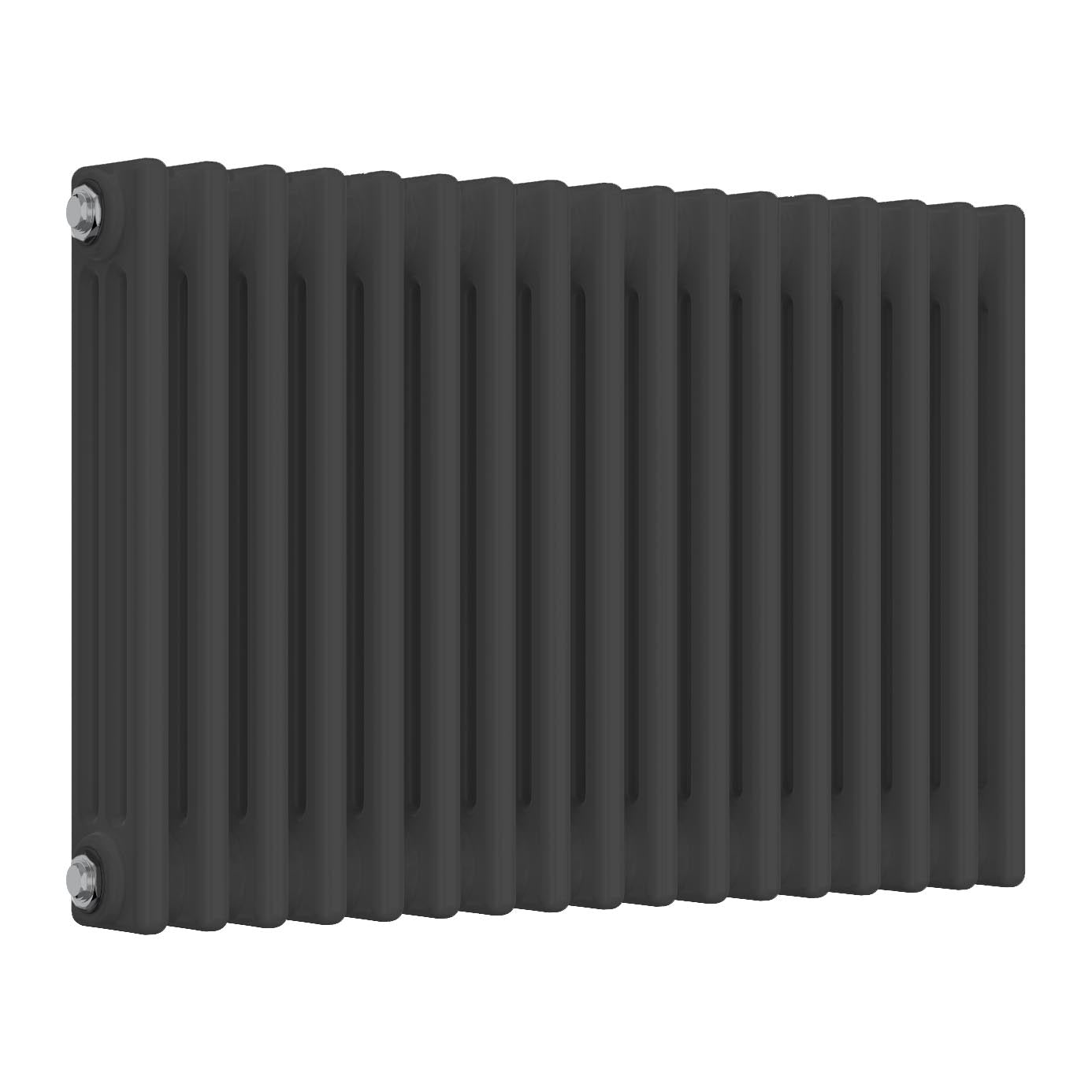

Short Anthracite Radiator - 3 Columns, 785mm Wide | 500mm High

Short Anthracite Radiator - 3 Columns, 785mm Wide | 500mm High

£330.00 £203.79 inc. VAT

IN STOCK
SKU: 3/C517A

Quantity
  • Width 785mm
  • Height500mm
  • Pipe Centres785mm + valves
  • Colour Anthracite / Matte
  • Columns 3
  • Heat Output (Δ50) 860watt │ 2932btu/h

Product Details

Width: 785mm
Height: 500mm
Pipe Centres: 785mm + valves
Heat Output: 860watt │ 2932btu/h
Wall to Pipe Centres: 66mm
Total Projection: 98mm
Finish: Anthracite / Matte
Orientation: Horizontal
Columns: 3
Sections: 17
Material: Mild Steel
Weight: - kg
Usage: Central Heating
Mountings: Fixing brackets, plugs, screws and airvent
Guarantee: 5 Years

A lower wall height doesn't have to mean lower heat output. This three‑column radiator stands just 500mm high but spans a useful 785mm wide, making it a natural fit under a standard window or on a shorter wall where a taller unit simply wouldn't go. With 860W (2932 BTU/h) on tap, this short column radiator warms up medium‑sized living spaces, dining rooms, or home offices comfortably – perfect for rooms where wall height is limited but you still want proper warmth.

The matte anthracite finish keeps the look modern and low‑maintenance. It doesn't show dust or marks the way gloss finishes do, so it stays presentable with minimal wiping. This 785mm wide radiator uses a three‑column, 17‑section design to pack in plenty of heating surface, yet the total projection remains a slim 98mm – no awkward protrusion into the room. The horizontal orientation and standard pipe centres (785mm plus valves) mean a qualified heating engineer can usually fit it without major disruption to existing pipework.

Practical advantages include:

  • Three columns per section deliver significantly higher heat output than two‑column alternatives of the same width – ideal for rooms where every bit of warmth counts.

  • Mild steel construction retains heat effectively, continuing to radiate warmth even after the boiler cycles off – helpful for rooms that cool down quickly.

  • The 5‑year manufacturer's guarantee provides long‑term protection against defects, giving you peace of mind.

  • Supplied with wall brackets, screws, plugs, and an air vent – everything needed for a straightforward installation is included.

  • At 500mm high, this radiator is ideal for fitting under low windows or on shorter walls where space is at a premium.

A qualified heating engineer can complete the installation without drama, thanks to the standard connections and horizontal orientation. For a reliable, space‑saving radiator that doesn't compromise on heat output, this three‑column anthracite model is a practical, hard‑working choice for any UK home.
